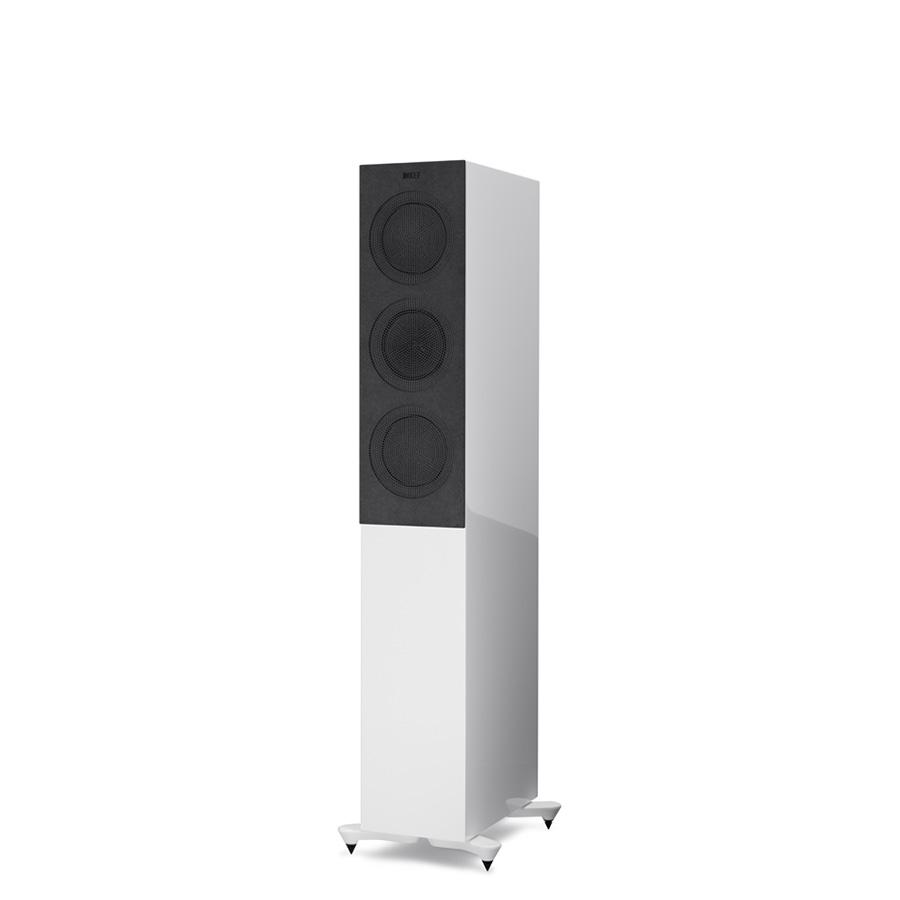

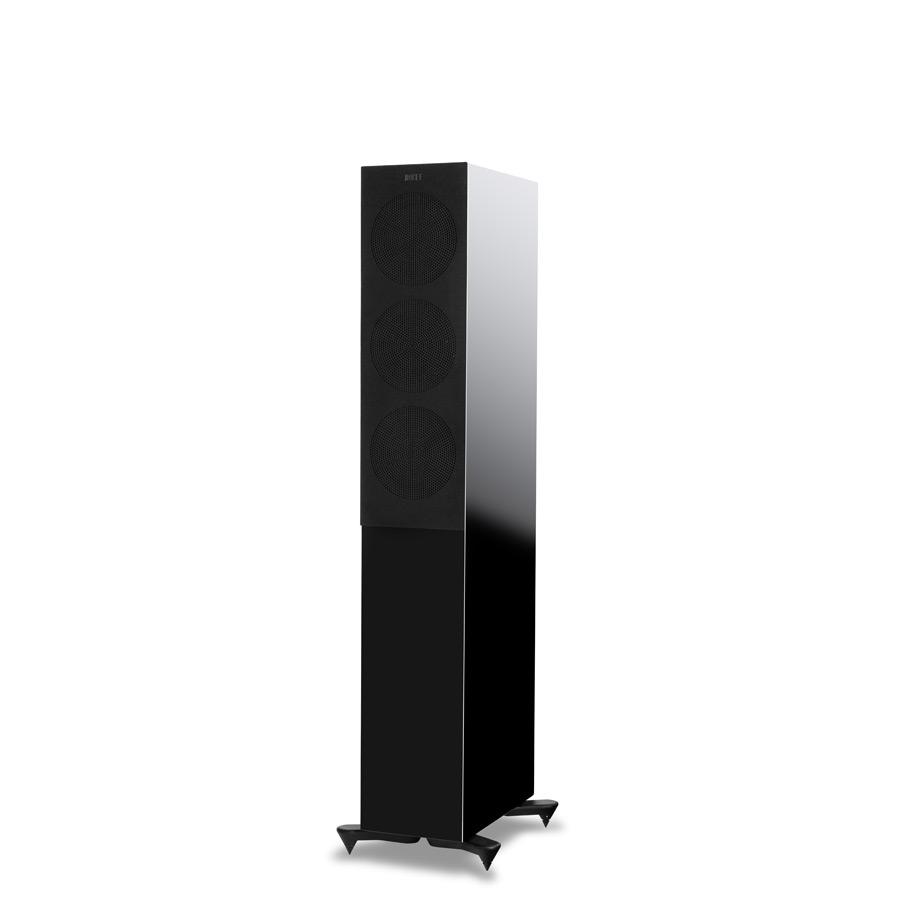

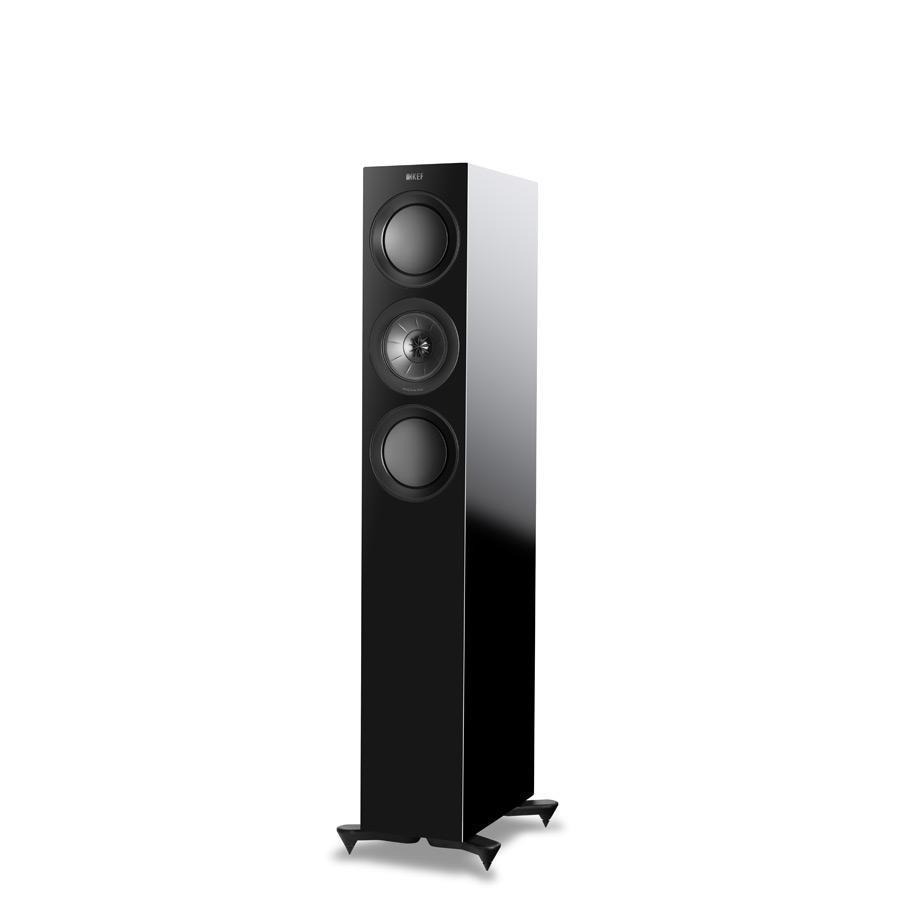

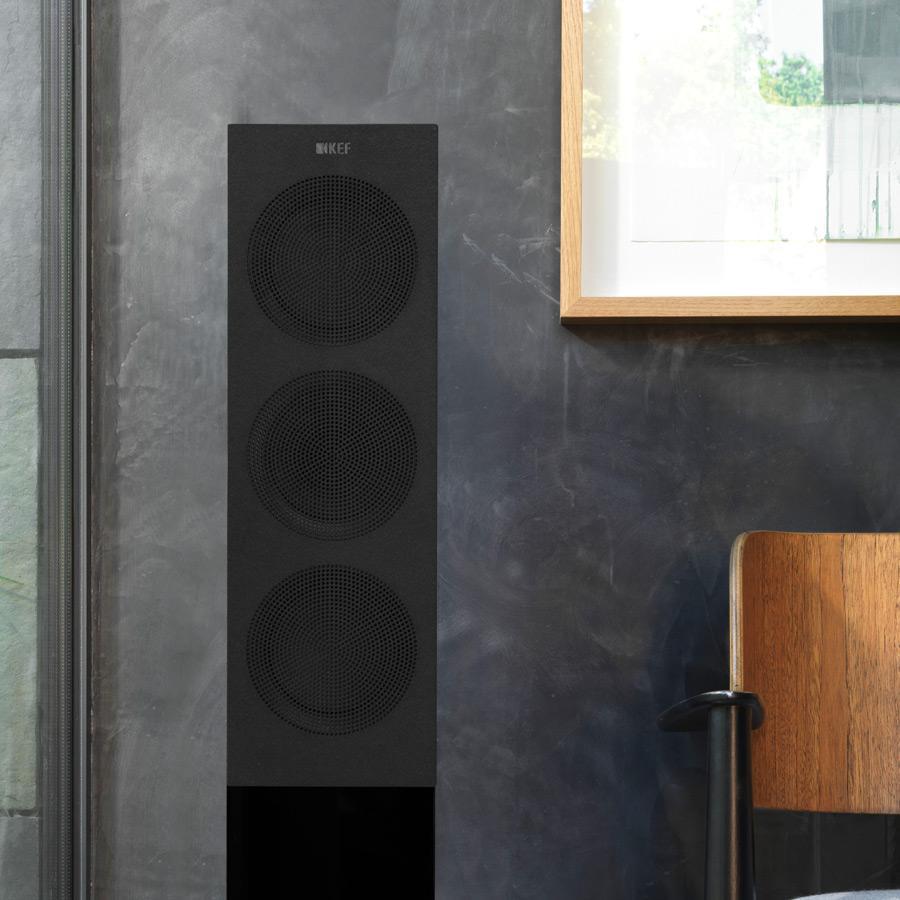

Compact three-way floorstander
KEF engineers do not believe in compromise, the R5 floorstander is compact and elegant yet it delivers music and movies with ease.

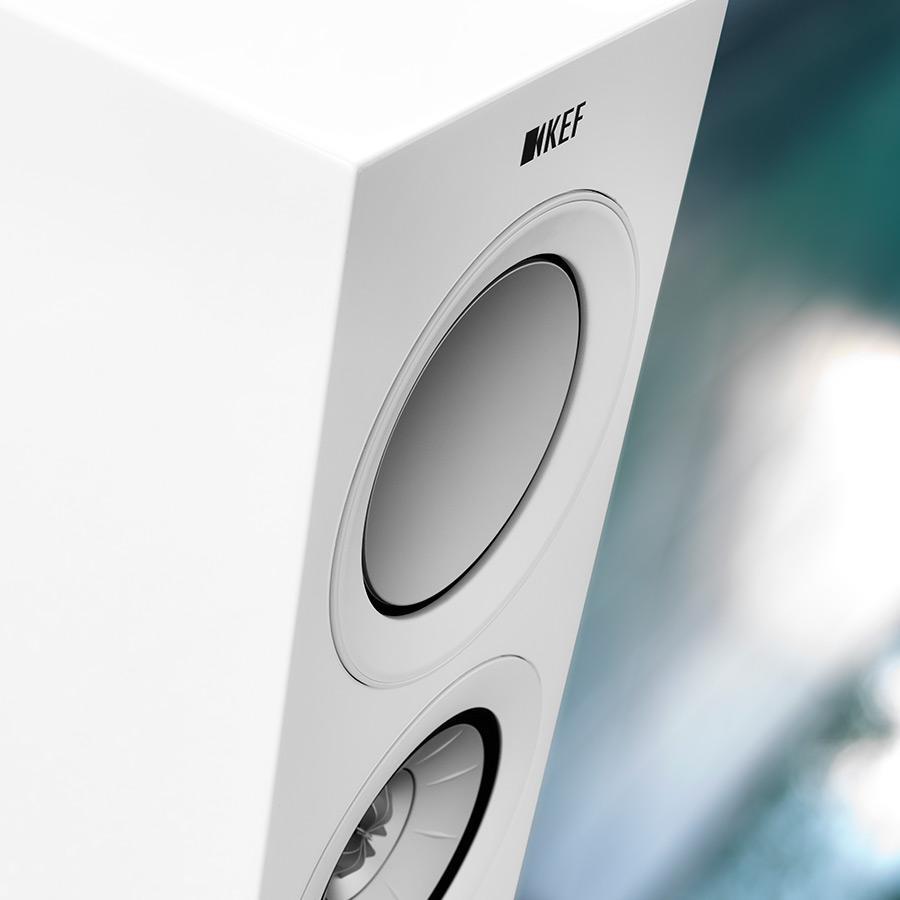

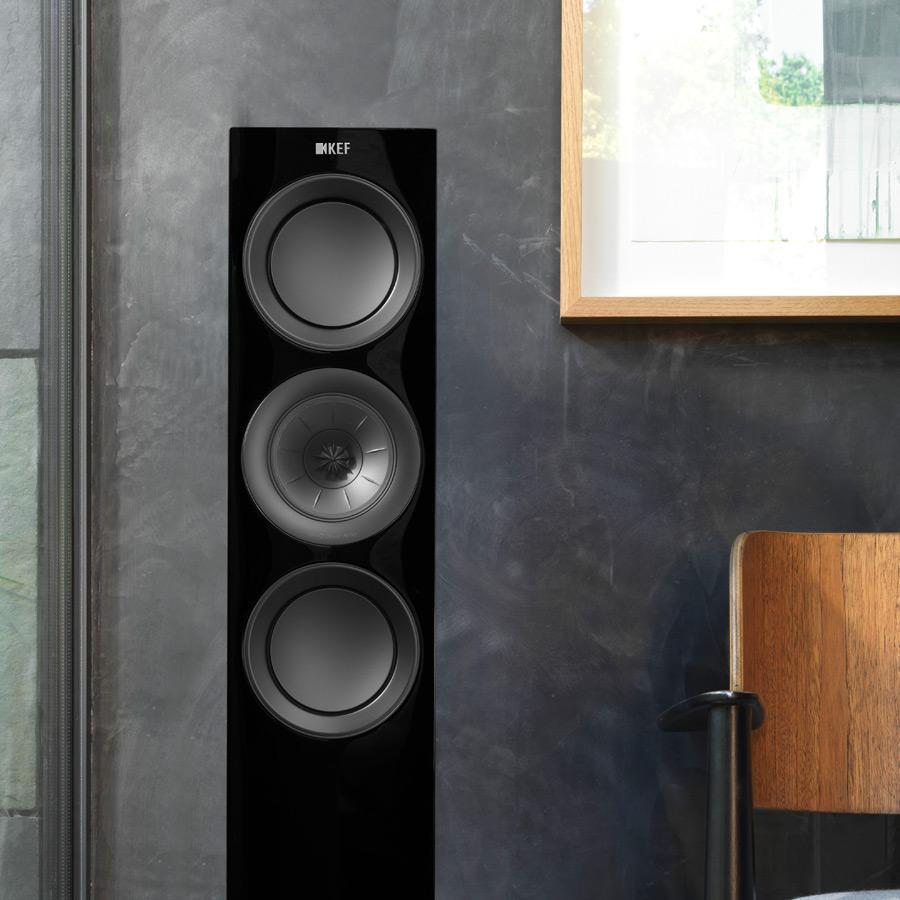

The svelte R5 contains a Uni-Q with 125mm (5in.) midrange driver and 25mm (1 in.) aluminium dome tweeter for incredible detail while twin 130mm (5.25in) hybrid aluminium bass units manage the bass.
The Details
SPECIFICATIONS
Weight
27.3 kg (60.2 lbs.)
Dimension (HxWxD)
1025 x 175 x 343.5 mm (40.4 x 6.9 x 13.5 in.) with terminal*
Dimension (HxWxD)
1071.4 x 271.6 x 343.5 mm (42.2 x 10.7 x 13.5 in.) with terminal with Plinth*
Dimension (HxWxD)
1025 x 175 x 320 Cabinet only
Design
Three-way bass reflex
Frequency Range
38Hz-50kHz (-6dB)
Typical In-Room Bass Response
29Hz (-6dB)
Frequency Response
52Hz-28kHz (±3dB)
Harmomic Distortion
<0.3% 120Hz-20kHz (90dB, 1m)
Maximum Output
110dB
Amplifier Power
15-200W (recommended)
Nominal Impedance
8Ohms (min.3.2Ohms)
Driver Units
Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 2x 130mm (5.25in.) hybrid aluminium
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 2x 130mm (5.25in.) hybrid aluminium
Crossover Frequencies
400Hz, 2.9kHz
Finishes

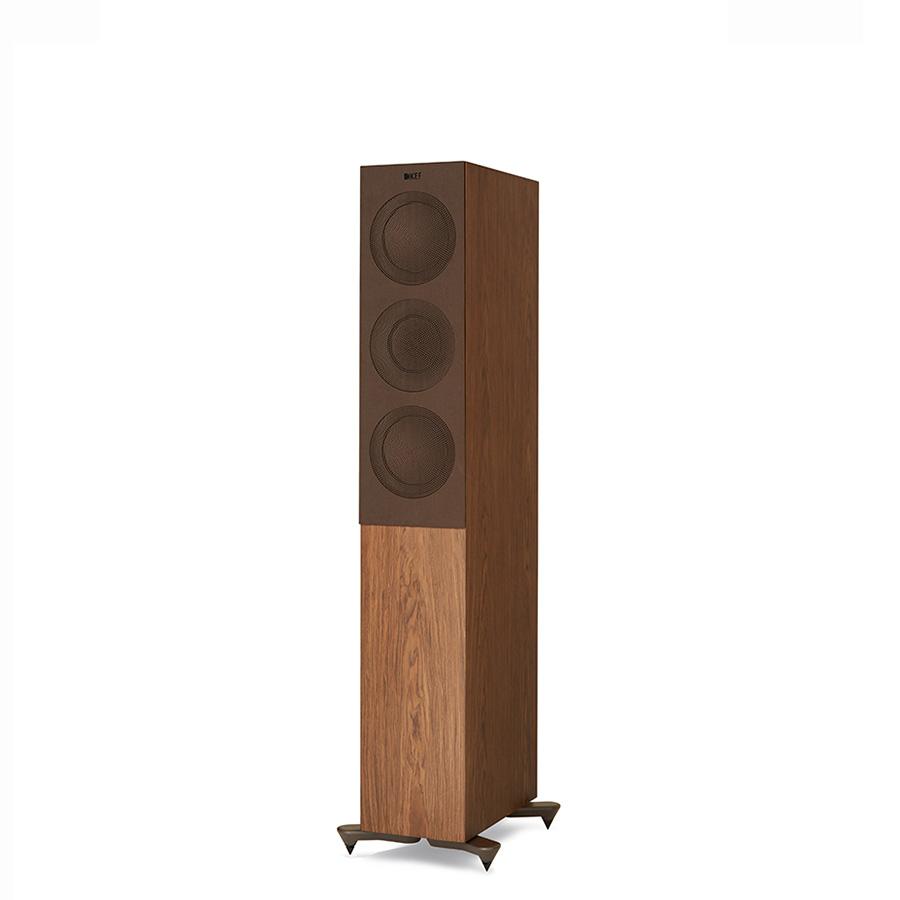

Black Gloss / White Gloss / Walnut
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit
AWARDS & REVIEWS
5 GLOBES – HI-FI WORLD
“Their resolution of fine detail is superb and, with strong projection, illuminates orchestral works" — 2019
