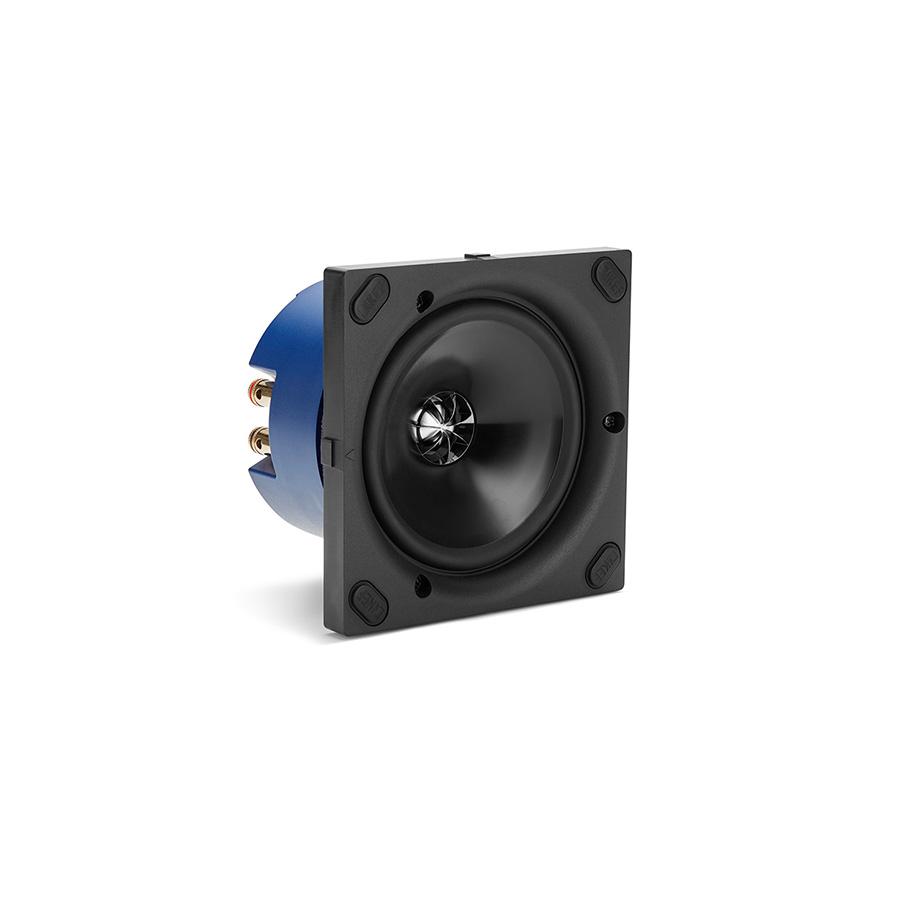

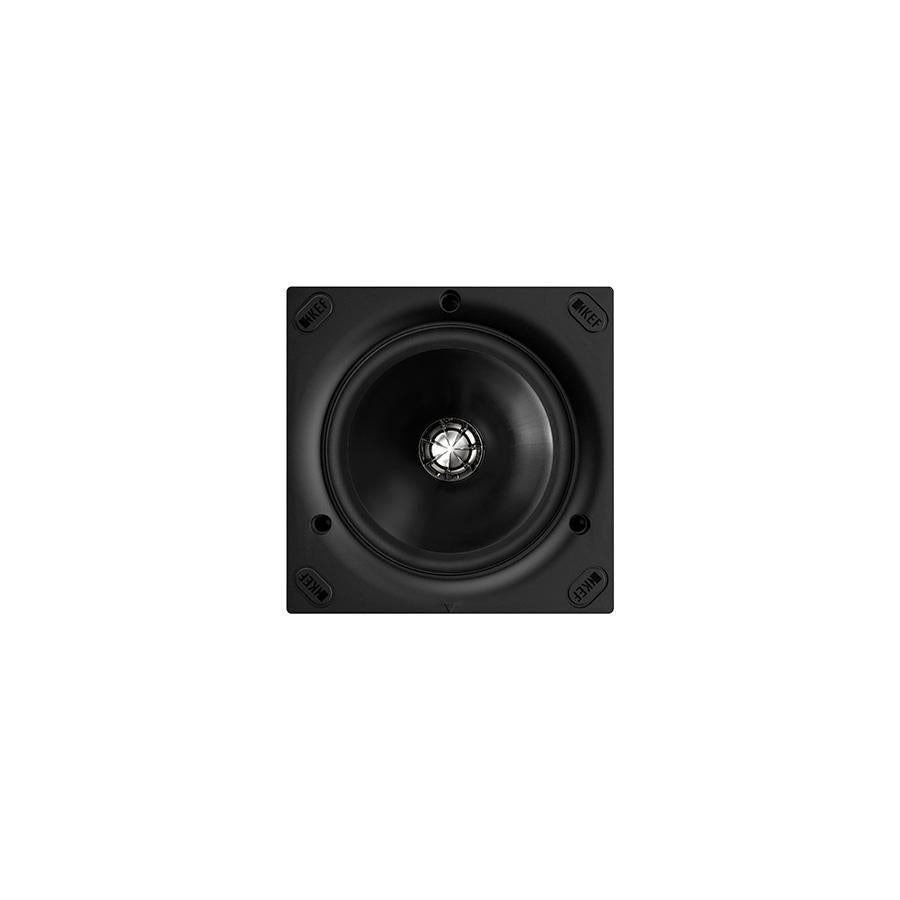

Flush Mount Architectural Speaker
The KEF Ci130QSfl is a flush-mounted frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QSfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

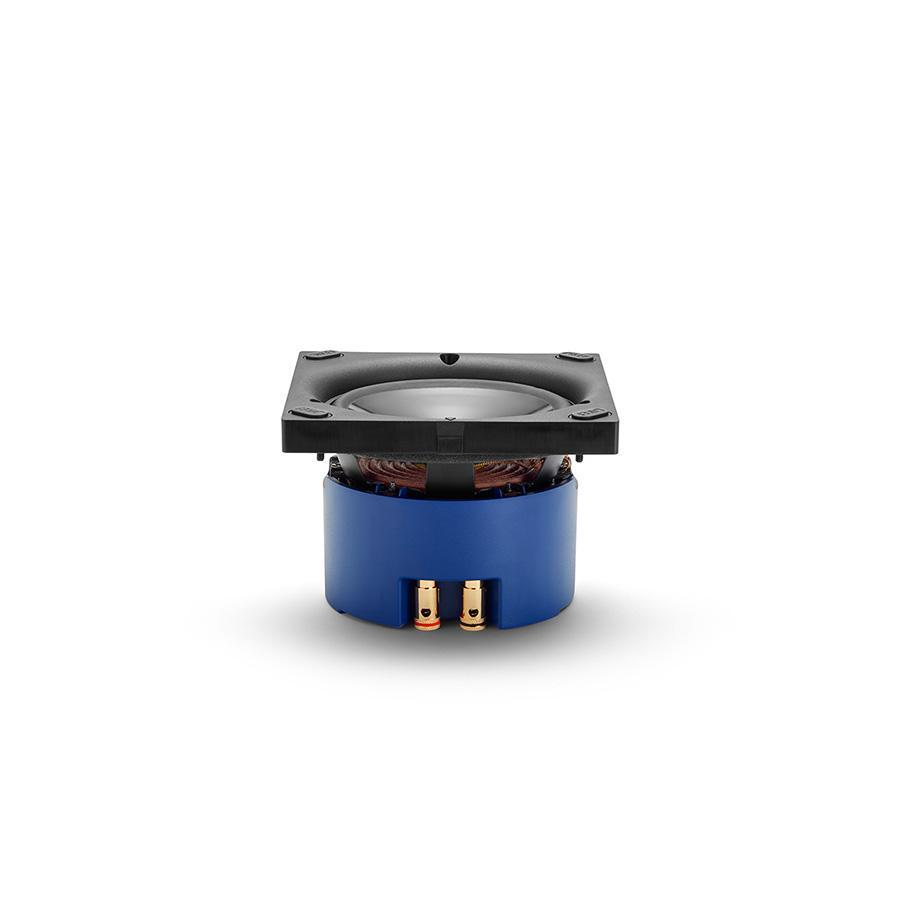

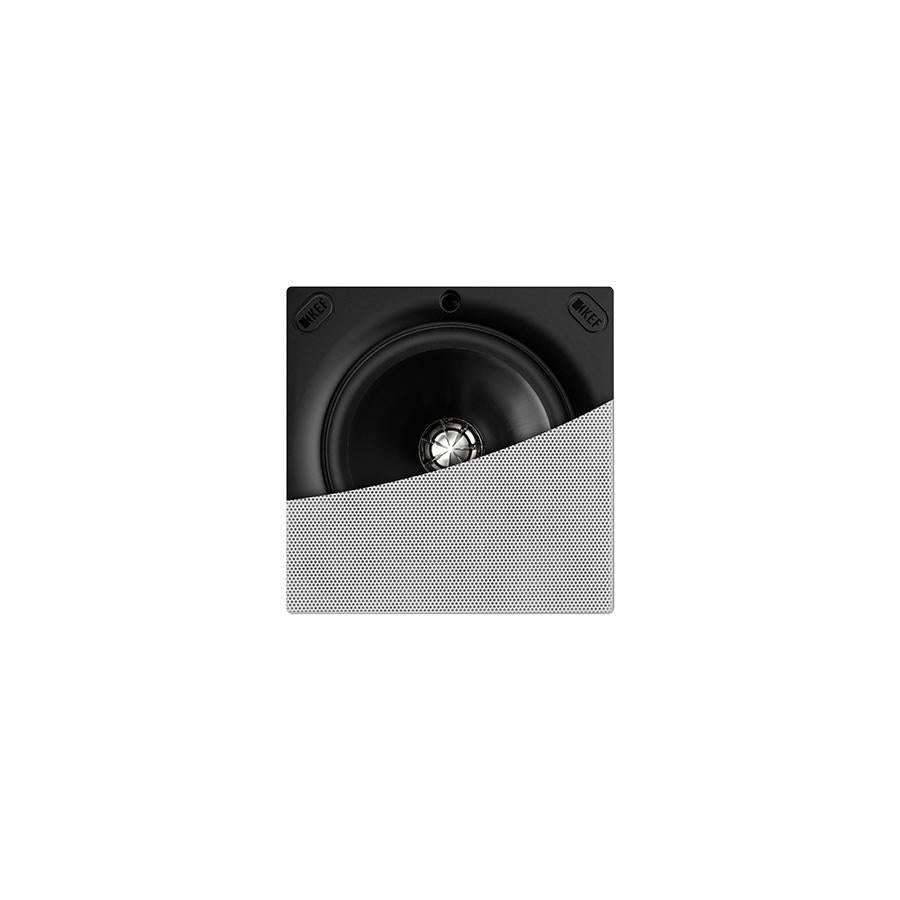

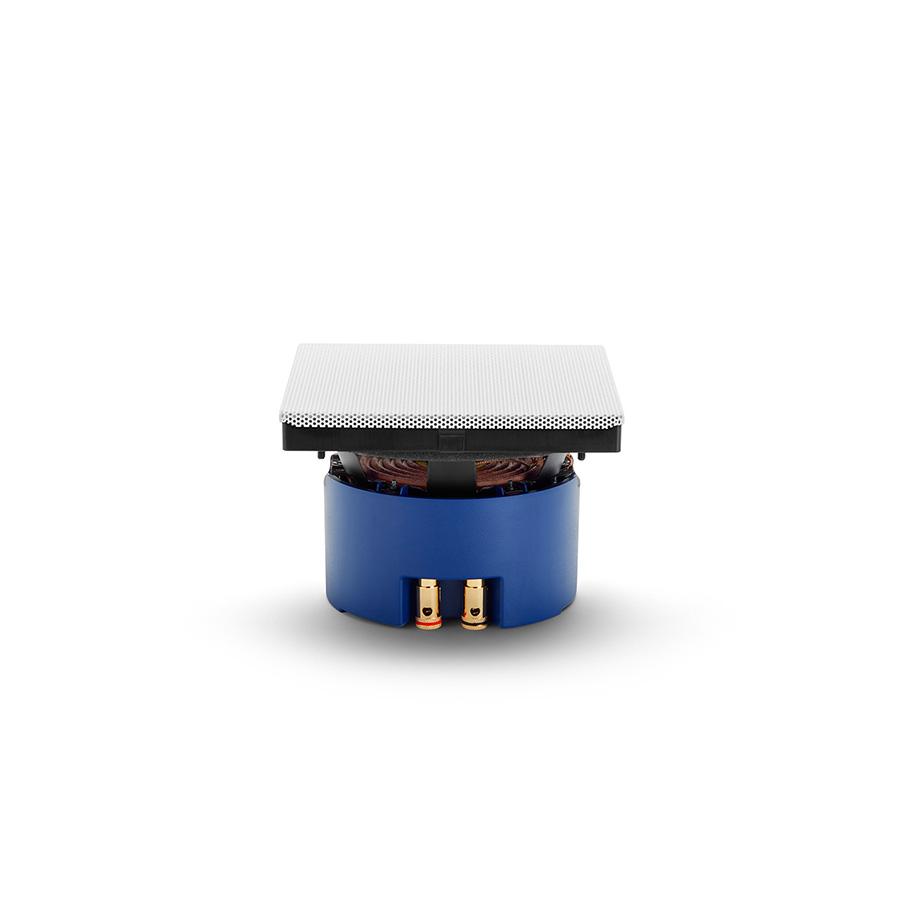

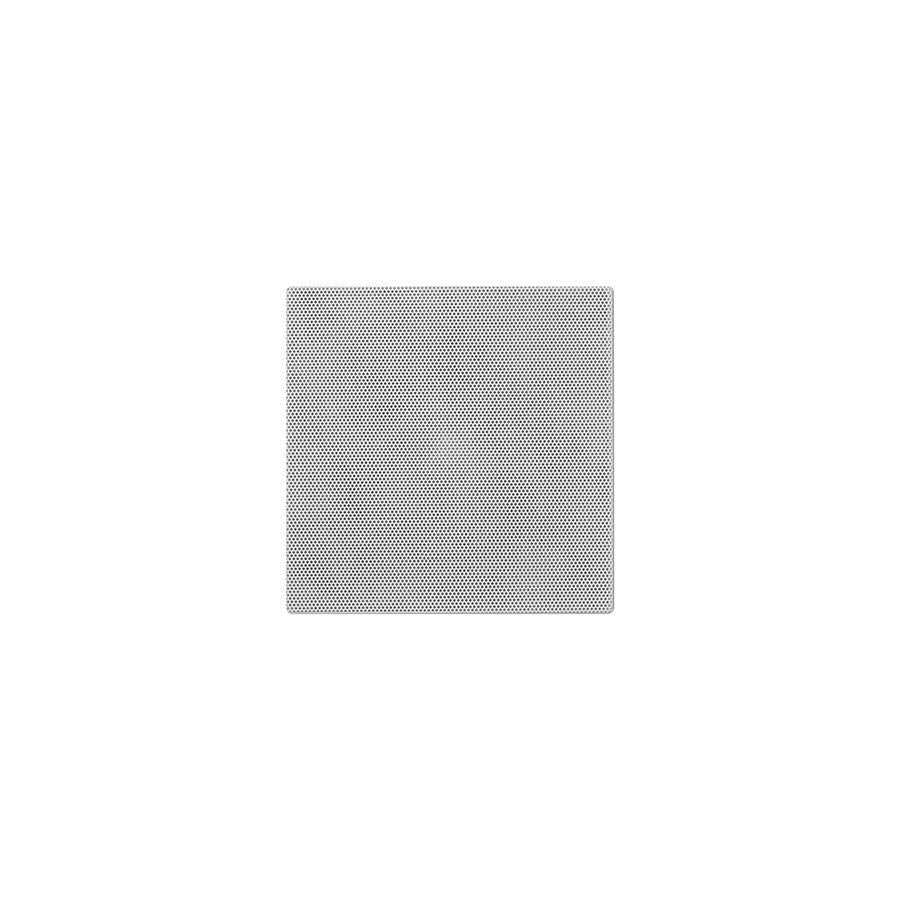

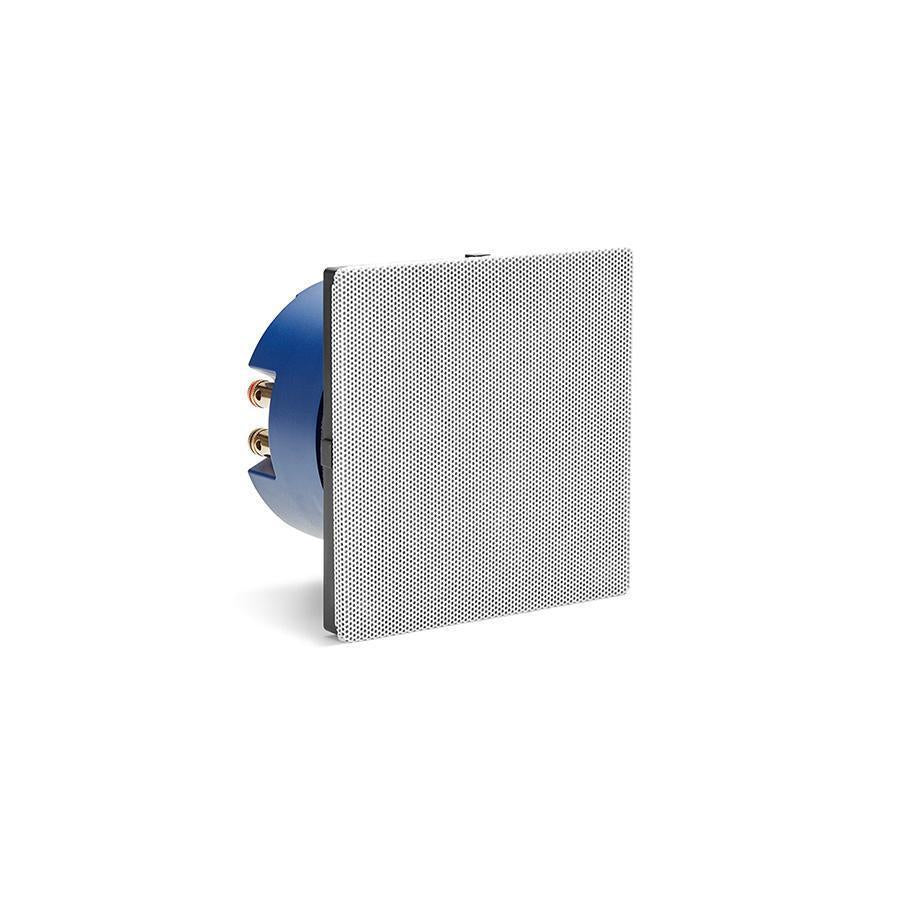

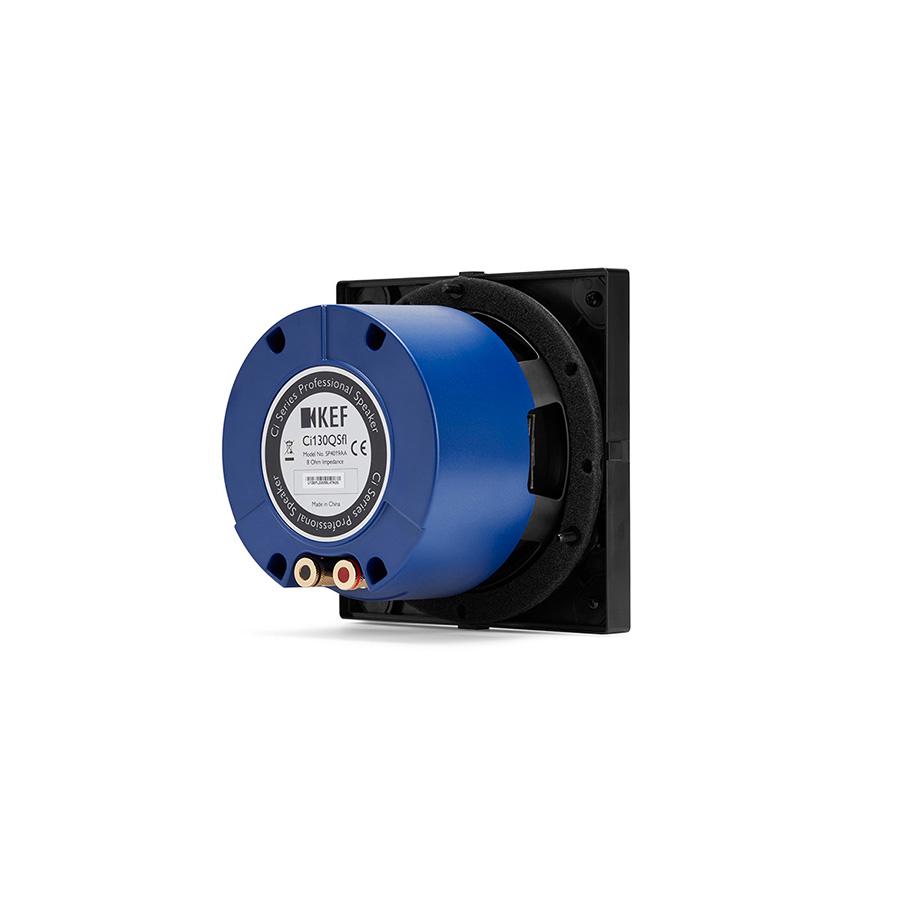

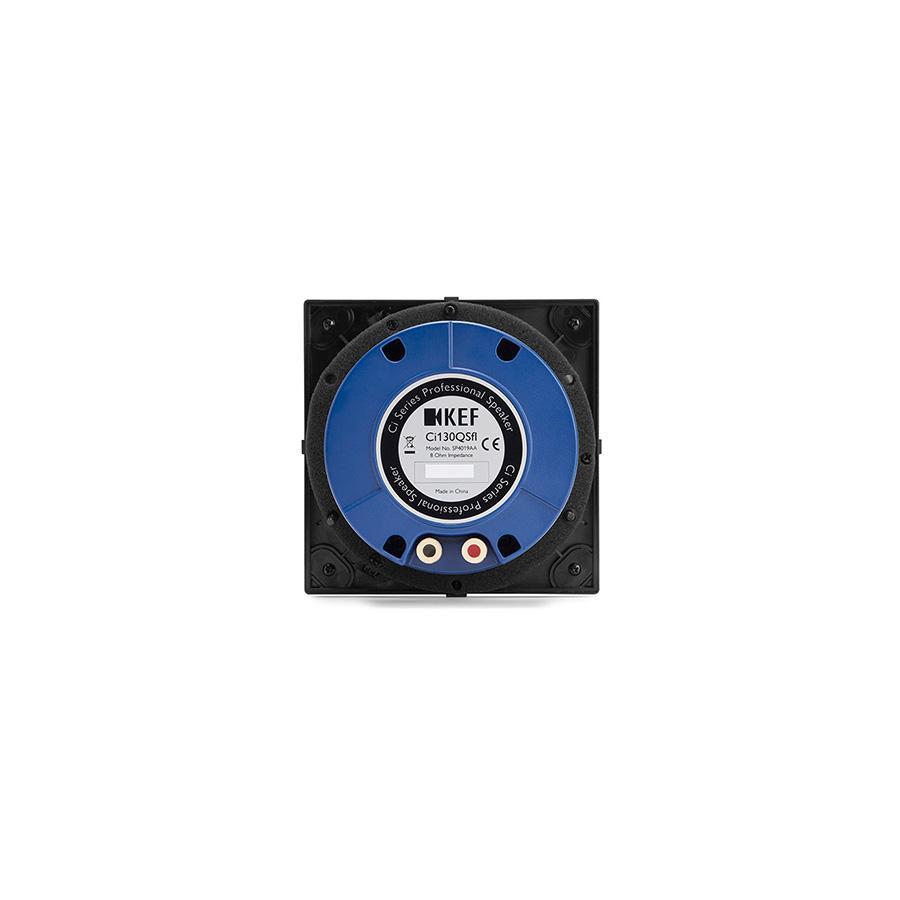

Ci130QSfl
Part of the Ci-Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.
Intuitive Installation

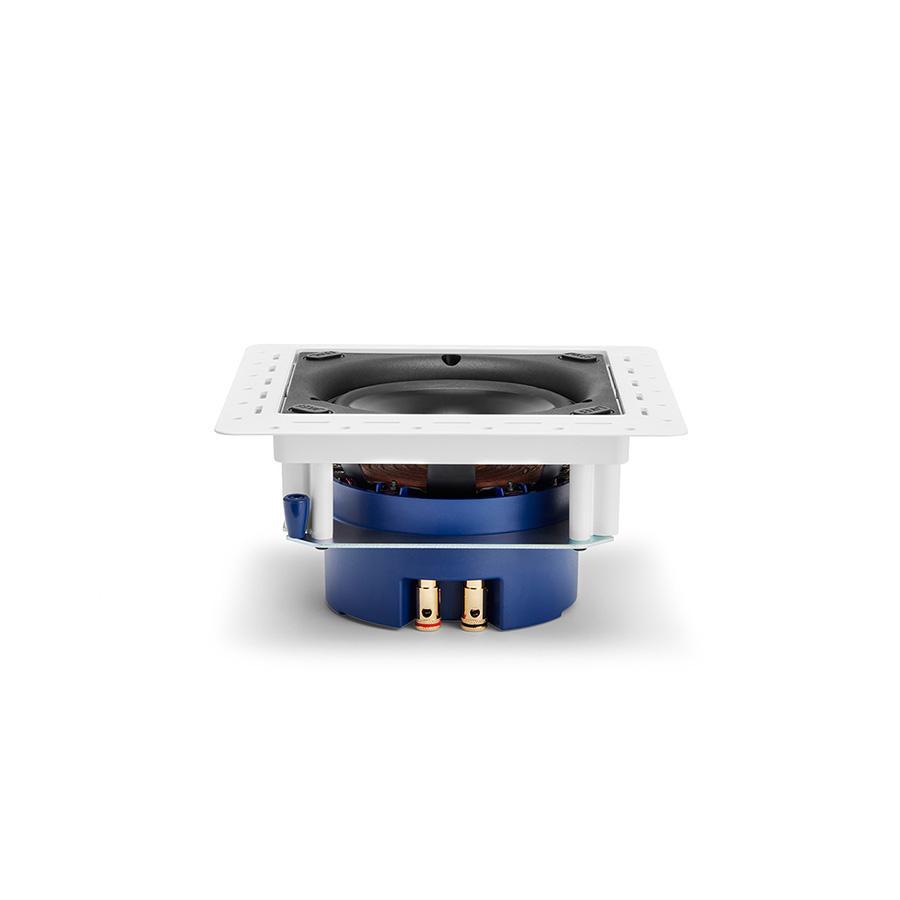

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.
The Details
SPECIFICATIONS
Nominal Impedance
8 Ohms
Sensitivity
87dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
Open-Backed
45Hz - 34kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage
130
MAX SPL (DB)
103
Crossover Frequency
3.8kHz
Drive Units
LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
HF: 19mm (0.75in.)
Recommended Amplifier Power
10-100W
Recommended High-Pass Filter (HZ)
50Hz
Product External Dimensions
200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.)
(7.9 x 7.9 x 4.08 in.)
Cut-Out Dimensions
158 x 158 mm
(6.22 x 6.22 in.)
(6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)
Net Weight
1.6kg (3.53Ibs.)
Mounting Depth From Surface
101mm (3.98in.)
Optional Rough In Frame
NA
Optional Rear Enclosure
NA
Ideal Rear Volume(L)
15
Minimum Rear Volume(L)
10
Safety And Regulatory Compliance
NA
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
