Architectural Speakers

Ci160.2CS

Features KEF’s patented Uni-Q driver array

Ci160.2CS in-wall speaker allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CS where other speakers in its class won’t fit.

Ci160.2CS

Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.

Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the Ci-C Series fits unobtrusively into your home.

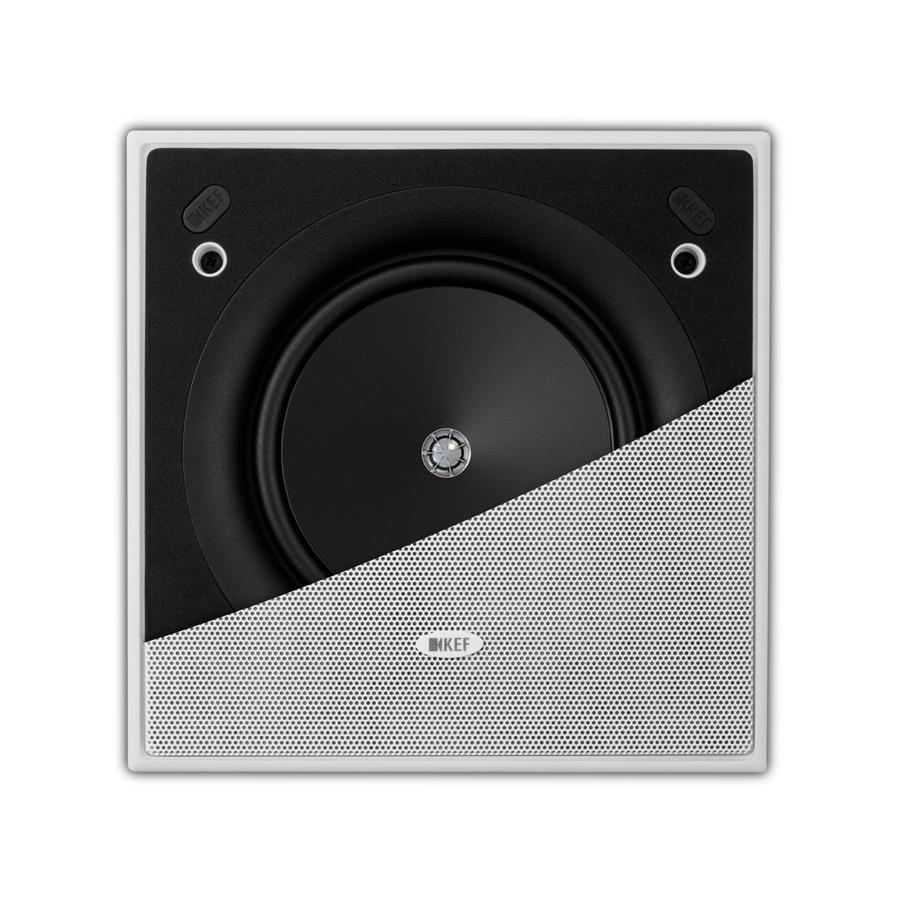

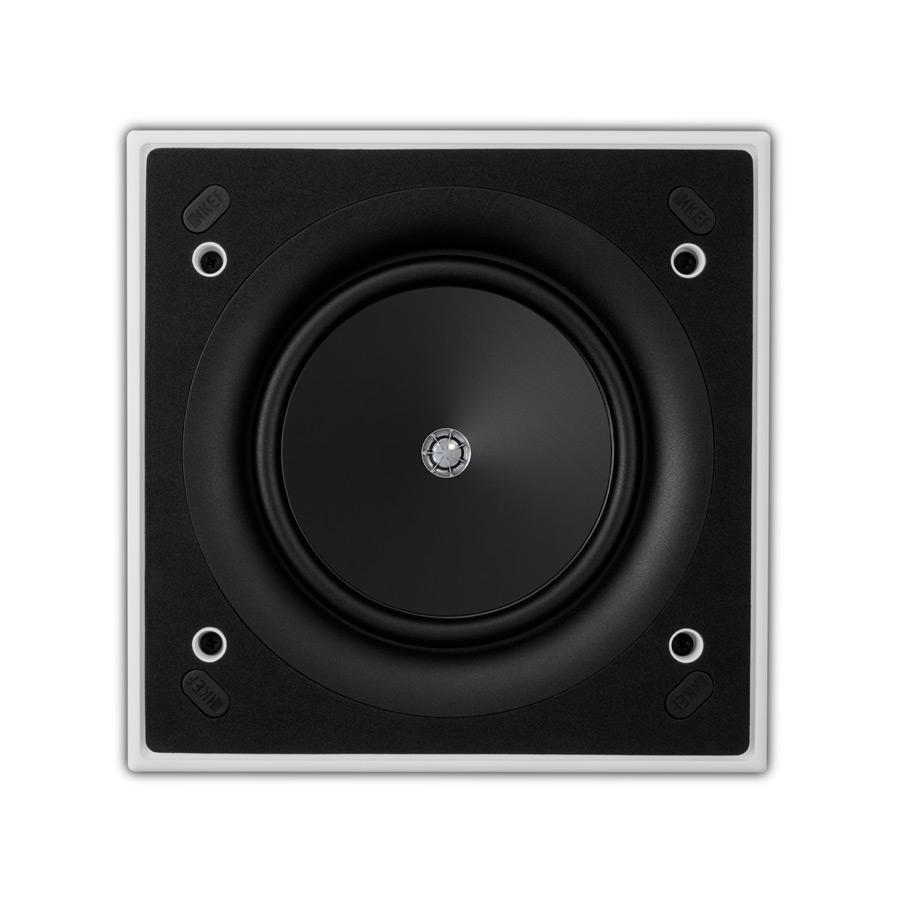

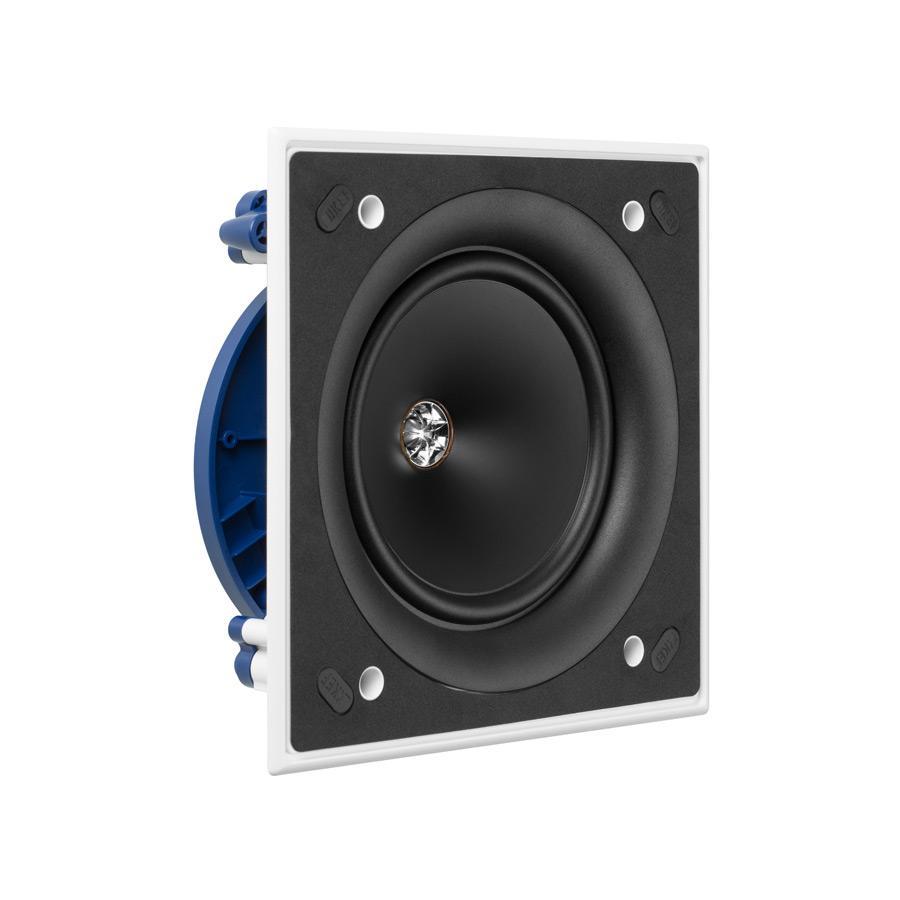

Grille Off

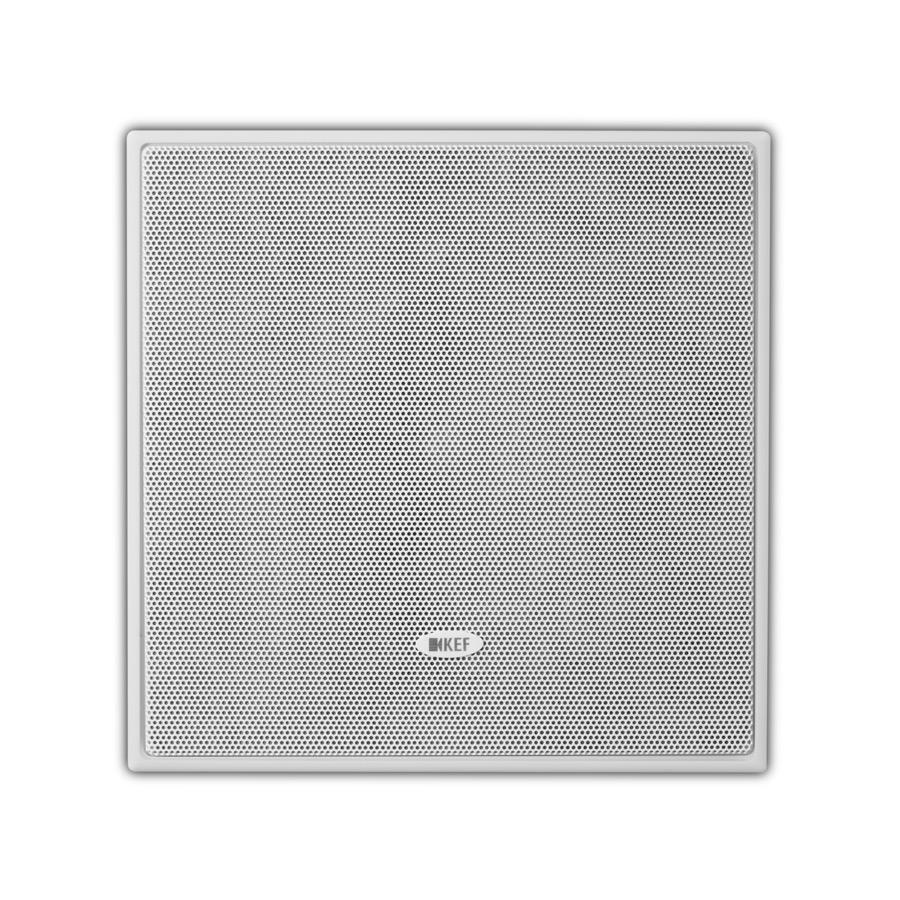

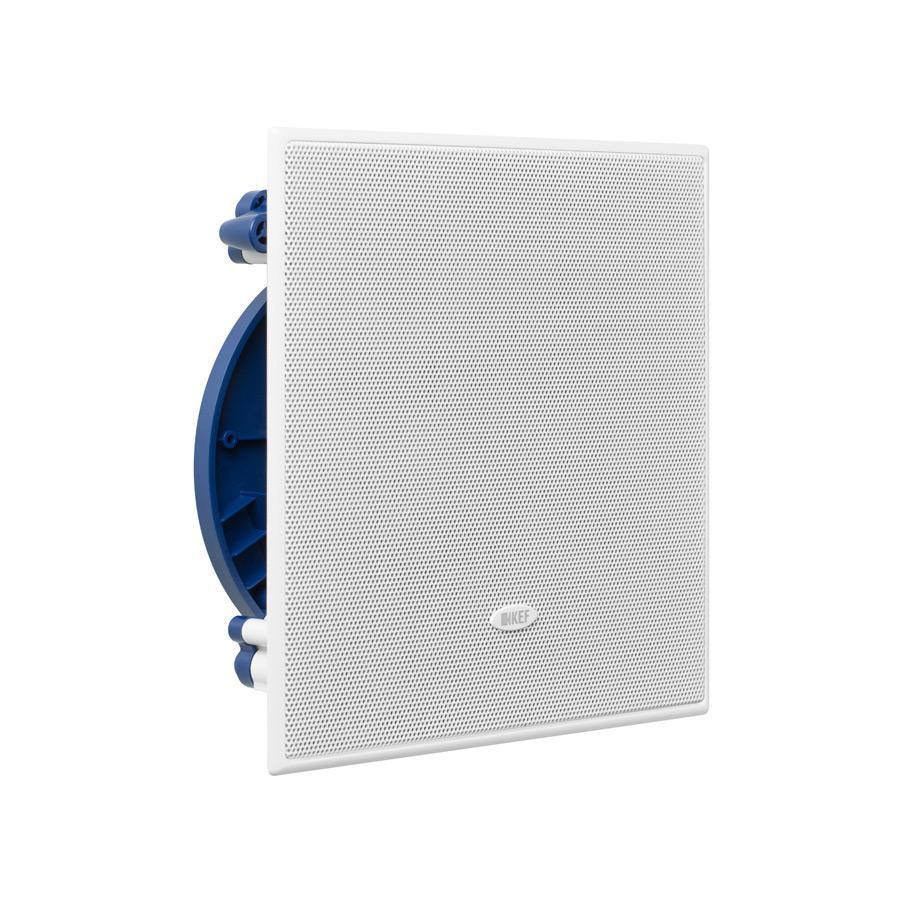

Grille On

The Details


FEATURES

accordion open
UTB™ Ultra-Thin Bezel
160mm (6.5in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified

SPECIFICATIONS

accordion open
Nominal Impedance
8 Ohms
Sensitivity
89dB (2.83V/ 1m)
Frequency Response
52Hz-20kHz (+/-6dB) open-backed
Crossover Response
2.5kHz
Drive Units
LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-100W
Product External Dimensions (H X W X D)
223 x 223 x 88.7 mm (8.78 x 8.78 x 3.49 in.)
Cut-Out Dimensions (H X W)
94 x 194 mm (7.64 x 7.64 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 30mm (1.19 in.)
Ceiling Thickness (Minimum): 3mm (0.12 in.)
Mounting Depth From Surface
84.5mm (3.33in.)
Optional Rough In Frame
RIF160S
Optional Rear Enclosure
RNC160S
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

Please visit our Ci Software Download page for more details.
