Architectural Speakers

Steel Rear Enclosures

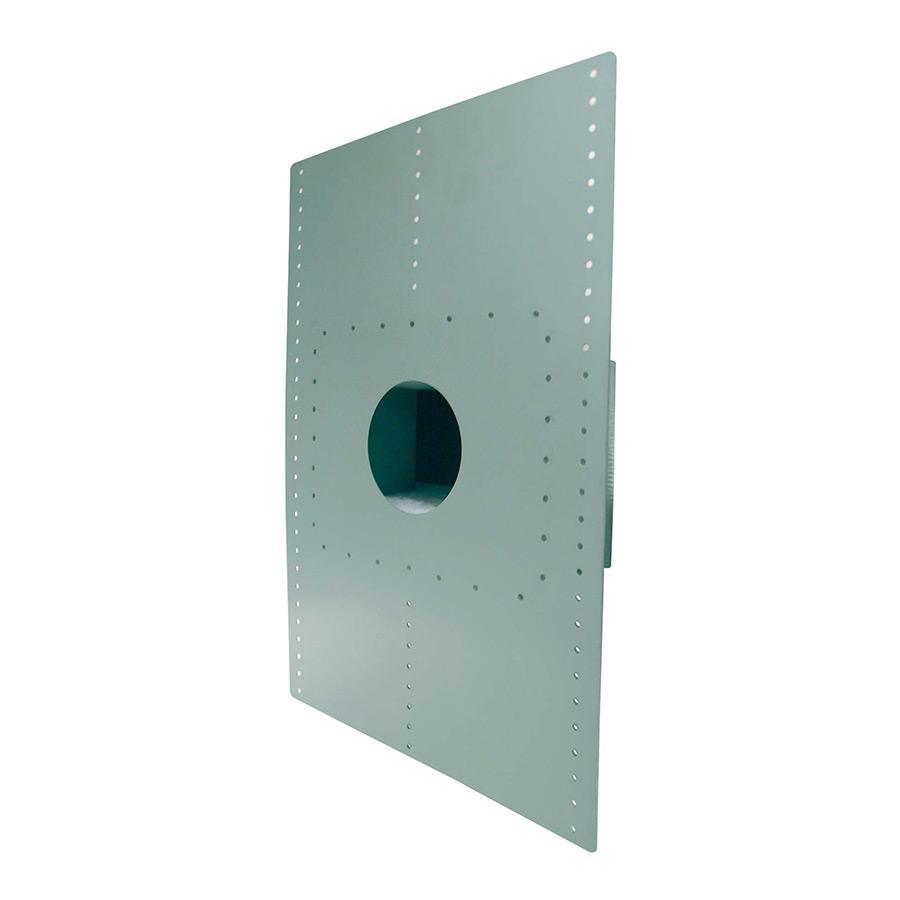

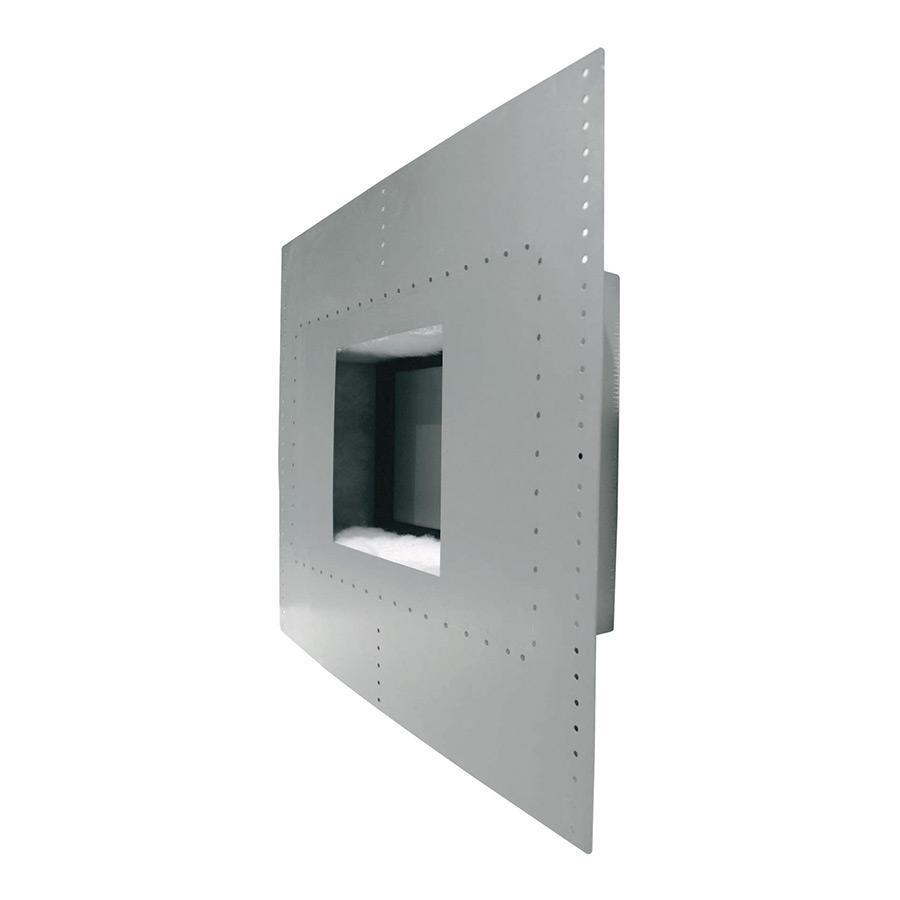

Metal Rear Enclosures (back boxes) are available for most models of KEF Ci Speakers

Installed during the pre-wiring of a new construction installation they provide a sealed enclosure for the loudspeaker.

KEF Ci Speaker Accessory

Metal Rear Enclosures (back boxes) are available for most models of KEF Ci Speakers. Installed during the pre-wiring of a new construction installation they provide a sealed enclosure for the loudspeaker and reduce sound transmission to the room behind the speaker.

Round

Round
Ci200R
Cutout (mm)
Ø240mm
Cutout (in.)
Ø9.45in.
Rear Enclosure
RNC200R
SP3467AA
Speakers
Ci200QR
Ci200CR
Ci200.3QR
Ci160QCT*
Ci160ST*
Ci200RR++
Round
Ci160R
Cutout (mm)
Ø196mm
Cutout (in.)
Ø7.71in.
Rear Enclosure
RNC160R
SP3465AA
Speakers
Ci160QR
Ci160CR
Ci160CRds
Ci160TR
Ci160SR
Ci160.2QR
Ci160.2FR
Ci110FCT*
Ci115QCT*
Round
Ci130R
Cutout (mm)
Ø158mm
Cutout (in.)
Ø6.22in.
Rear Enclosure
RNC130R
SP3463AA
Speakers
Ci130QR
Ci130CR
Ci130.2QR*
Ci130.2FR*
Round
Ci100R
Cutout (mm)
Ø118mm
Cutout (in.)
Ø4.65in.
Rear Enclosure
RNC100R
SP3462AA
Speakers
Ci100QR+
Round
Ci80R
Cutout (mm)
Ø97mm
Cutout (in.)
Ø3.82in.
Rear Enclosure
RNC80R
SP3461AA
Speakers
Ci80.2QR+
Round
Ci50R
Cutout (mm)
Ø65mm**
Cutout (in.)
Ø2.56in.**
Rear Enclosure
Ci50CAN**
SP3509AA
Speakers
Ci50R

Rectangle

Rectangle
Ci200L
Cutout (mm)
334 x 238mm
Cutout (in.)
13.15 x 9.37in.
Rear Enclosure
RNC200L
SP3784AA
Speakers
Ci200QL
Ci200CL
Rectangle
Ci160L​
Cutout (mm)
274 x 194mm
Cutout (in.)
10.79 x 7.64in.
Rear Enclosure
RNC160L
SP3785AA
Speakers
Ci160QL
Ci160CL
Ci160SL

Square

Square
Ci200S
Cutout (mm)
238 x 238mm
Cutout (in.)
9.37 x 9.37in.
Rear Enclosure
RNC200S
SP3468AA
Speakers
Ci200QS
Ci200.3QS
Square
Ci160S
Cutout (mm)
194 x 194mm
Cutout (in.)
7.64 x 7.64in.
Rear Enclosure
RNC160S
SP3466AA
Speakers
Ci160QS
Ci160CS
Ci160CSds
Ci160SS
Ci160.2QS
Ci160.2FS
Square
Ci130S
Cutout (mm)
158 x 158mm
Cutout (in.)
6.22 x 6.22in.
Rear Enclosure
RNC130S
SP3464AA
Speakers
Ci130QS
Ci130CS
Ci130.2QS
Ci130.2FS
Square
Ci100S
Cutout (mm)
112 x 112mm
Cutout (in.)
4.41 x 4.41in.
Rear Enclosure
RNC100S
SP3783AA
Speakers
Ci100QS
* Due to integrated back can this unit is not compatible with the rear enclosure.
** Ci50R cut out is 70mm (2.76in.) with the rear can. The Ci50 rear can is able to be used in a retro-fit installation
+ Use of metal rear enclosure with these models requires removal of integrated plastic rear can
